NEW — FLOOR STANDING DIGITAL SIGNAGE

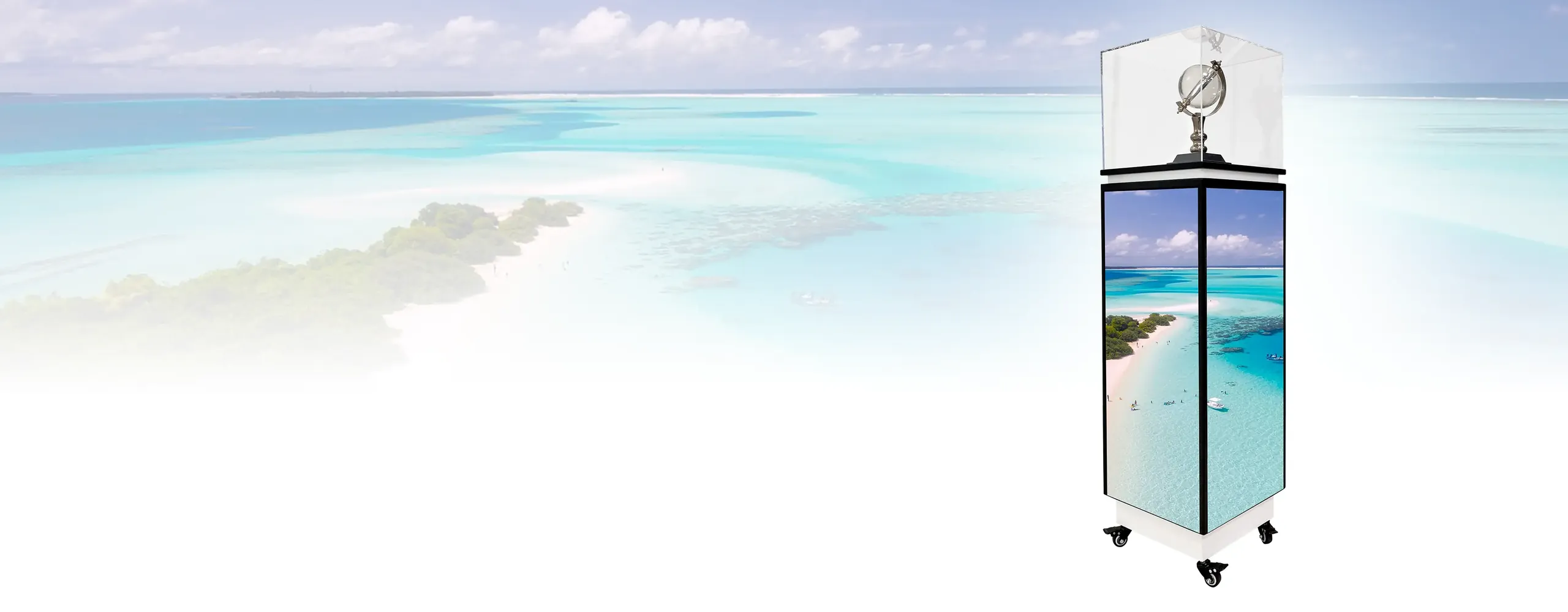

Indoor LED Product Display Stand

Indoor LED Display Stand — Four-Sided 360° Impact for Retail Spaces

Four 320×800mm LED sides (1.024㎡) face every aisle, 650CD indoor brightness, GOB protection against impact, lockable pulley wheels and phone-based content updates, built to replace static posters in shopping malls and retail stores.

Request a Quote → Explore Features
320×800mm
×4 Sides
1.024㎡
Display Area
650CD
Indoor Brightness
27Kg
Pulley Wheels
Company Certifications
30+
Certifications
80+
Countries
5,000 m²
Factory Area
2,000+
Units / Month
CE FCC RoHS ISO 9001 Google EDLA
PRODUCT LINEUP

Floor-Standing Digital Signage: Built for Retail

A four-sided 320×800mm LED display stand on lockable pulley wheels, with GOB-protected panels and phone-based content updates.

▶
Riotouch Indoor LED Product Display Stand
320×800mm × 4 Sides · 1.024㎡ · GOB · APP Control
⏱ Product overview · 1:17

▶ Watch the Riotouch four-sided LED display in action

Four-Sided 320×800mm Display — 360° Visibility

Lockable Pulley Wheels — Move It in Seconds

GOB-Coated Panels + Magnetic Front Maintenance

APP & Cloud Content Control

KEY FEATURES

Key Features of the Indoor LED Display Stand

Five things that decide whether a floor-standing digital signage unit earns its floor space: picture quality, protection, appearance, content and running cost.

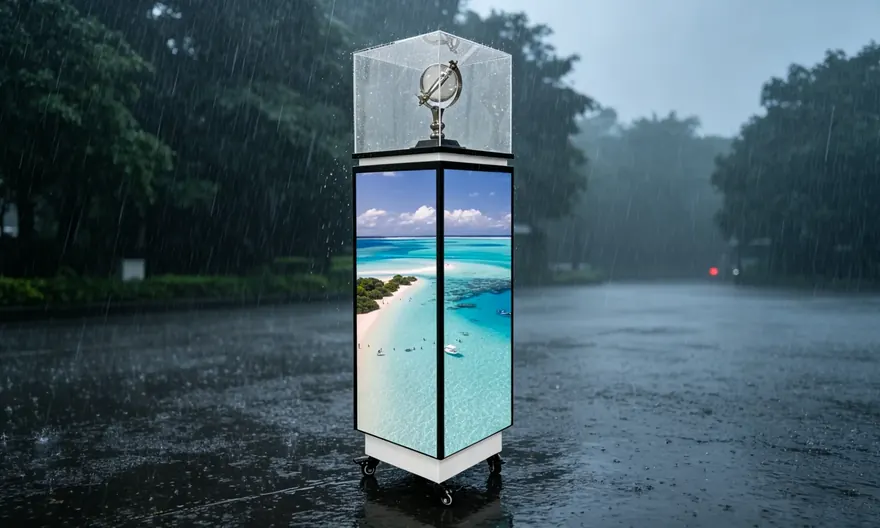

GOB coated indoor LED display stand staying lit through rain — waterproof and anti-collision surface
Picture & protection

Ultra HD, GOB Protected

P1.25–P2.5 pixel pitch with 14–16Bit grey scale and 3840 / 7680Hz refresh keeps text and product shots sharp at under a metre, while the GOB-coated surface resists water, impact and oxidation.

  • P1.25–P2.5 · 14–16Bit · 3840 / 7680Hz
  • Sharp under one metre, flicker-free on camera
  • GOB coated: waterproof, anti-collision, anti-oxidation

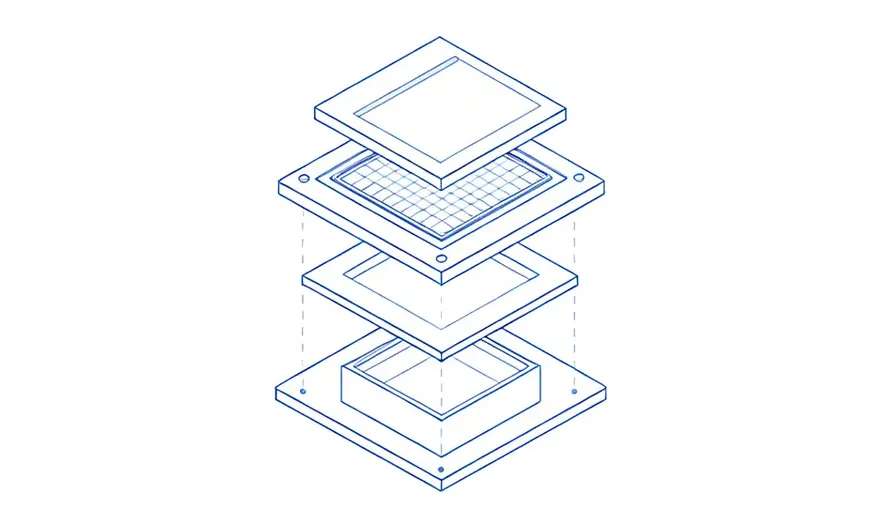

Exploded view of the bezel-design indoor LED display stand cabinet
Appearance

Bezel Design, Plug & Play

A bezel-design integrated cabinet with a clean, premium finish for high-end shopping malls, brand stores and exhibition halls. It is plug & play straight out of the crate: no installation crew and no extra frame parts, so a new floor standing display can start selling the same day it arrives.

  • Bezel design, integrated cabinet
  • Plug & play, no installation
  • Selling the same day it arrives

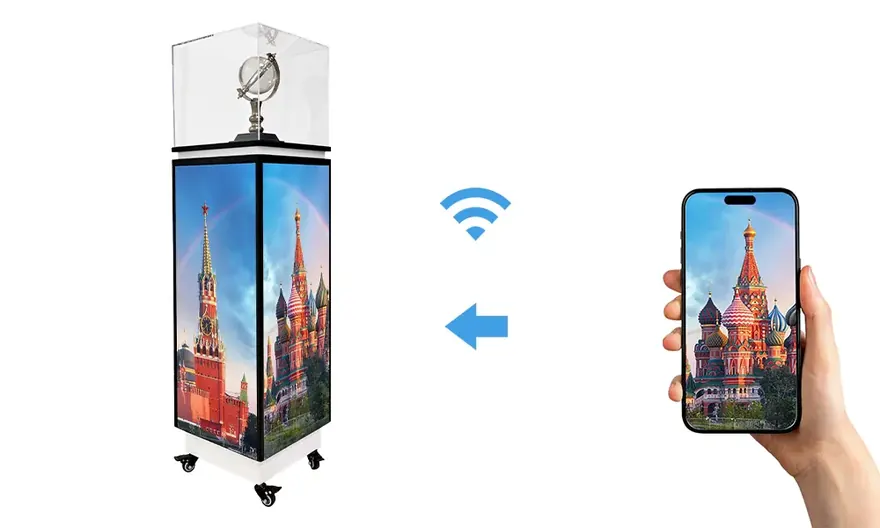

Updating indoor LED display stand content wirelessly from a mobile APP
Content

Mobile APP Content Control

Posters, promotional videos and campaign copy are uploaded wirelessly from the dedicated mobile APP — no computer and no technician on site. New product launches and holiday activities go live in one click, It works the same for one store or a whole chain.

  • No computer required
  • Posters, videos and copy
  • One-click updates for launches and holidays

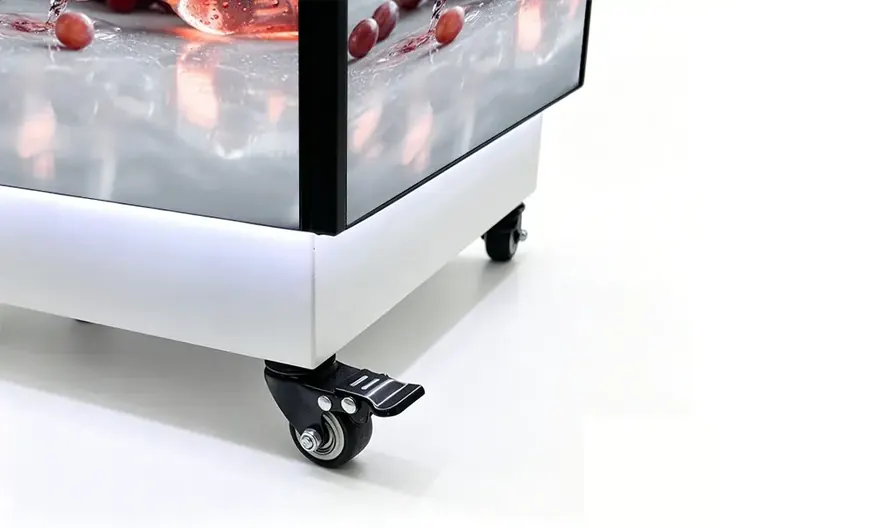

Lockable pulley wheels on the indoor LED product display stand
Mobility

Lockable Pulley Wheels

Lockable pulley wheels let one person roll the stand to a new position — a promotion zone, the store entrance or the next shopping mall signage spot — then lock it in place in seconds. With a 27 Kg cabinet there is no dismantling, no lifting and no second pair of hands needed.

  • Lockable pulley wheels
  • One person, 27 Kg — no dismantling
  • Reposition and lock in seconds
Low power consumption of the indoor LED display stand — 123W average
Running cost

Low Power — 123W Average

Average power consumption is only 123W, with a 410W peak. All-day playback therefore costs little to run, and the operating cost stays low for chains running multiple indoor LED display stands across stores.

  • 123W average · 410W peak
  • Low cost for all-day playback
  • Built for multi-screen chains
APPLICATIONS

Where It Works: Malls, F&B & Exhibitions

One movable four-sided screen for the places customers actually pause: malls, restaurants and exhibitions.

➚

Exhibitions & Museums

Visitor guidance, sponsor content and exhibit highlights on four sides — then rolled to the next hall between shows.

➚

Restaurants, Cafés & Bars

Menus and daily specials change by daypart: staff update from a phone before service and roll the stand to wherever guests are.

➚

Shopping Malls & Atriums

In the middle of the walkway, one screen meets shoppers arriving from four directions — with the product itself displayed on top.

SPECIFICATIONS

Technical Specifications

Technical overview of the four-sided floor-standing digital signage model.

Four-Sided LED Display Stand Datasheet (PDF)
Feature Indoor LED Product Display Stand 320×800mm
ModelP1.25 / P1.538 / P1.86 / P2 / P2.5
Pixel PitchP1.25mm / P1.538mm / P1.86mm / P2mm / P2.5mm
Display Size320×800mm × 4 Sides
Display Area1.024 ㎡
Module Size320×160mm
Lamp Bead / Craft1010+GOB / 1212+GOB / 1515+GOB (GOB coated, waterproof & anti-collision)
Full Screen Resolution256×640×4 / 208×520×4 / 172×430×4 / 160×400×4 / 128×320×4
Brightness650 CD (indoor)
Refresh Frequency3840Hz / 7680Hz
Gray Level14–16 Bit
Scan Mode64S / 52S / 43S / 40S / 32S
MaintenanceMagnetic adsorption, front maintenance
Average / Max Power123 W / 410 W
Weight27 Kg
FeaturesBezel design · Plug & play · Pulley wheels · APP content control
RUNNING COSTS

What a Floor-Standing Digital Signage Costs to Run

01 · Power
123W
Average draw, with a 410W peak. Content goes through the phone APP or the cloud system, so a new price, menu or seasonal campaign is live in one click, with no printed poster to reorder.
02 · Mobility
27Kg
Lockable pulley wheels let one person roll the stand to a new position, with nothing to dismantle and no fixing into the floor.
03 · On Screen
650CD
P1.25–P2.5 pixel pitch keeps text and product shots sharp, and the GOB coating is waterproof and anti-collision. Four 320×800mm sides give 1.024㎡ of display.
COMPARE

Four-Sided LED Display vs Conventional LED Posters

RIOTOUCH LED DISPLAY STAND

Indoor LED Product Display Stand

✅ Recommended for Premium Commercial & Interactive Use

Suitable for: Shopping Malls · Retail Stores · Restaurants · Exhibitions

GOB Coated movable unit 320×800mm APP + Cloud
  • Four 320×800mm sides (1.024㎡) — one stand is seen from every direction, not one flat poster face
  • GOB coated LED surface — waterproof, anti-collision, anti-oxidation, so it survives handling and store traffic
  • Lockable pulley wheels — one person moves the 27 Kg cabinet and locks it in place in seconds
  • P1.25 fine pixel pitch with 3840–7680Hz flicker-free refresh
  • Wireless updates from a mobile APP and cloud DMS — no USB stick and no on-site technician
Request a Quote →
CONVENTIONAL LED POSTERS

SMD / GOB LED Posters

⚠ Typical trade-off: cheaper, but fragile and fixed

Suitable for: Budget fixed installations

SMD/GOB Fixed Panel Manual Update
  • SMD chips exposed — vulnerable to impact and handling damage
  • Often larger pixel pitch (P1.86-P2.5) with lower detail at close range
  • Fixed one-piece structure — bulky to store and expensive to ship
  • No touch, no remote management on most models
  • Content updates require on-site USB / manual operation
FACTORY TOUR

Manufacturing & Quality

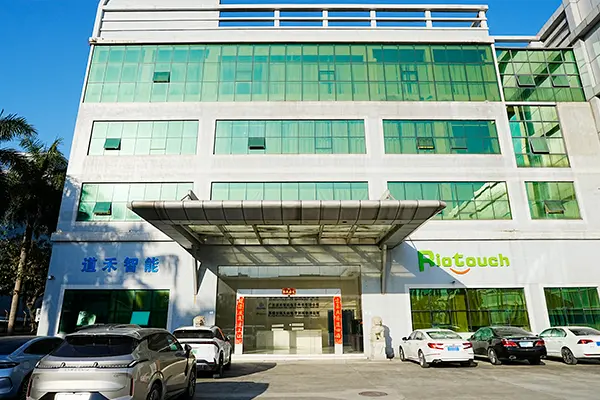

Riotouch factory buildingRiotouch Factory

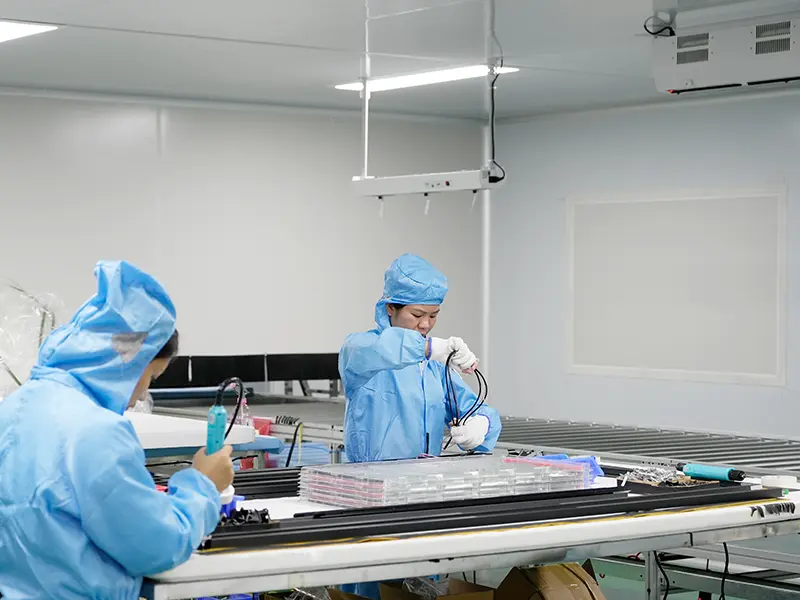

LED production lineProduction Line
Product exhibitionProduct Showroom

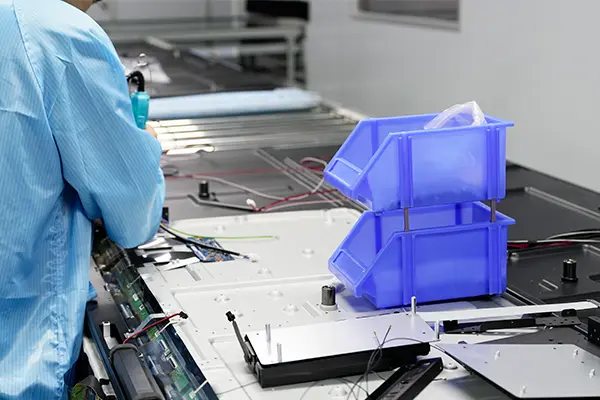

QC inspectionQC Inspection

Riotouch operates a 20,000m² manufacturing facility in Dongguan, China — dedicated to LED module production, SMT assembly, cabinet integration, and final assembly of LED posters and display stands.

Every unit goes through multiple QC checkpoints: LED module testing, brightness and color calibration, structural inspection, and a 24-hour aging test before packaging.

20,000 m²
Manufacturing Facility
200+
Production Staff
2,000+
Units / Month
ISO 9001
QC Certified
FAQ

Frequently Asked Questions

Quick answers on sizing, content control, moving the stand and indoor use.

A movable four-sided LED screen for indoor retail use. Each side is 320×800mm (1.024㎡ in total), so the promotion stays visible from every aisle from a single small footprint.

Yes: all four sides are LED panels (1×5×4 modules). Content is uploaded through the APP or cloud system and can be mirrored on all four sides or scheduled separately.

Your staff update it themselves. Images and video are uploaded from a phone APP, with no technician visit, no re-installation and no downtime.

Yes. The unit weighs 27 Kg and runs on lockable pulley wheels, so it can be repositioned for peak hours or campaigns and then locked in place.

P1.25, P1.538 and P1.86 suit close viewing in premium retail; P2 and P2.5 suit larger spaces or cost-driven projects. All options run at 3840–7680Hz, so phone video stays flicker-free.

No: this is an indoor model (650CD brightness). GOB coating protects the LEDs indoors; for outdoor or IP65 requirements please see our outdoor LED poster range.

Average power consumption is 123W, with a 410W peak. Content changes are made from the phone APP or the cloud system, so a new campaign does not need a print run, a courier or a fitting crew.

A printed stand is fixed once it is produced. Here all four 320×800mm sides are LED panels (1.024㎡ in total) and content can be changed from a phone in one click, while the stand rolls to a new position on lockable pulley wheels.
